extrudo

Parametric CAD for 3D printing, in your browser.

Available The desktop app for Linux, macOS and Windows

Sketch a profile, pull it into a solid, round the edges, and change one number to watch the whole part follow. Free and open source. Nothing to install, no account.

Open Extrudo

Want the newest features before they're released? Try the latest build. It changes daily and can break.

width 80 28 R8

Customizer ≈ 41.5 g of PLA

Design once, use parameters for unlimited variations (example of a solid)

9 steps

A box for a circuit board, step by step

Scroll through a real session: every picture is the app itself.

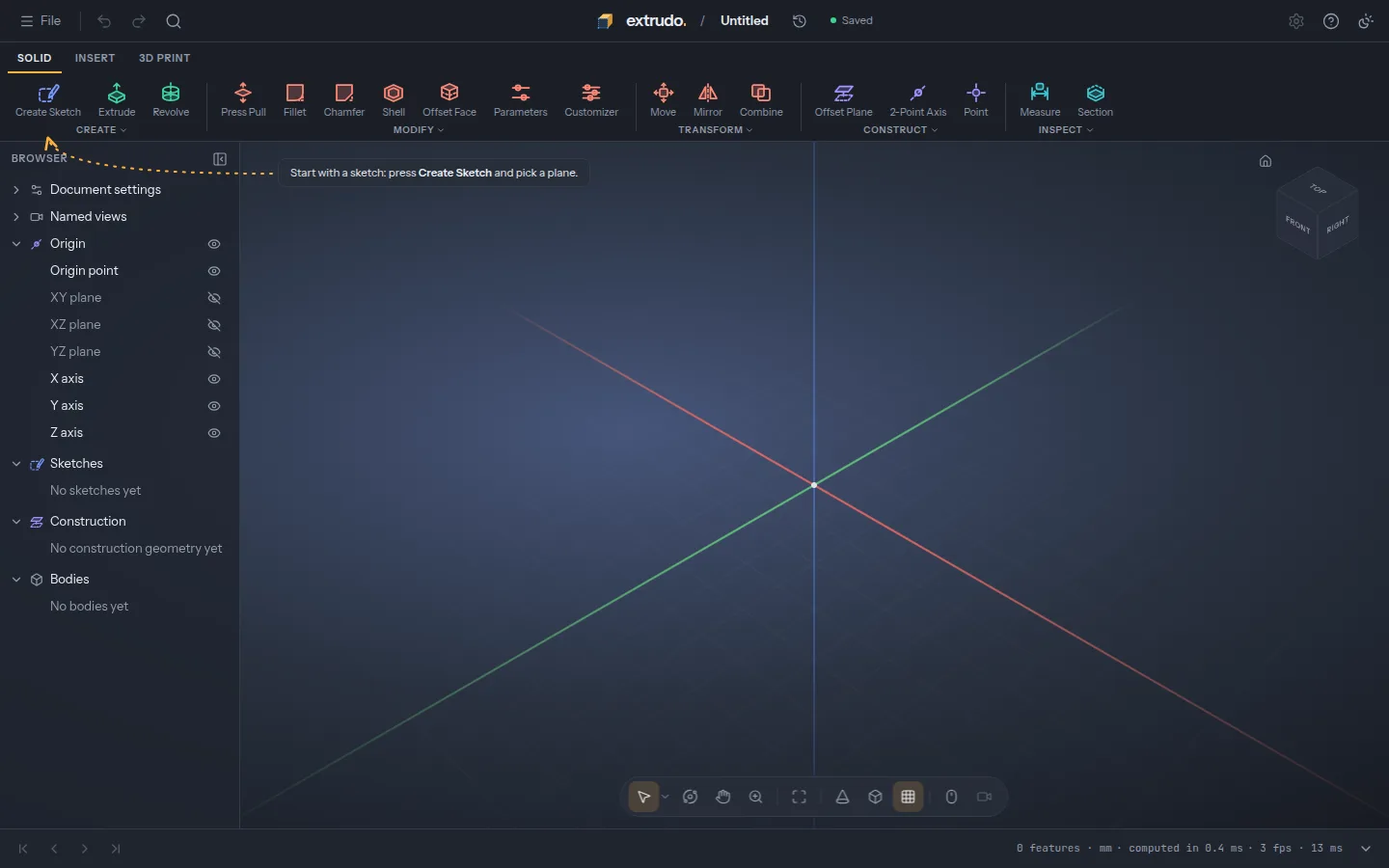

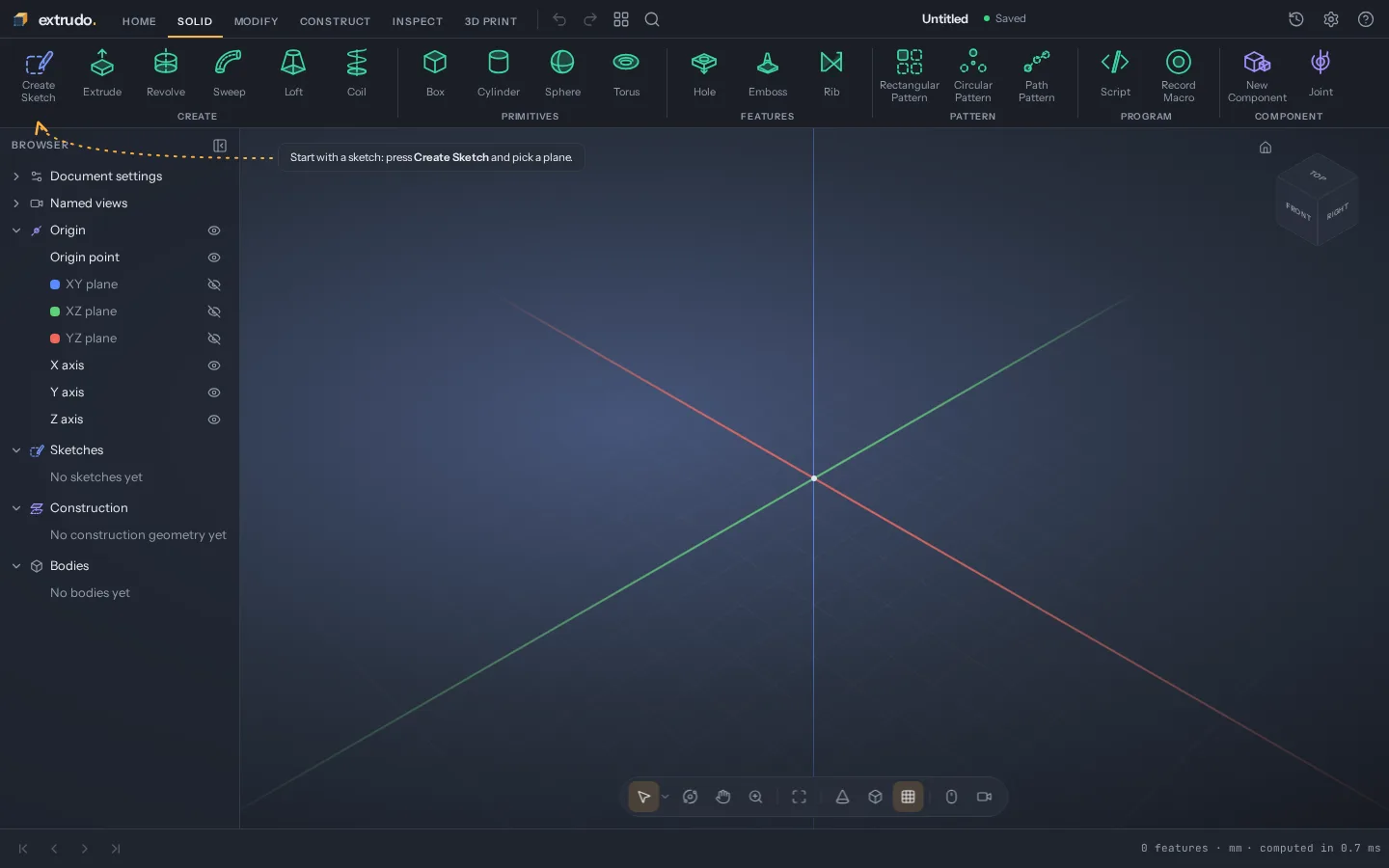

  1. Extrudo's empty design view: the viewport hint, the toolbar, and a browser with no features yet.

    Start with an empty design

    Press New design. There's nothing to install and no account: the design is saved in your browser.

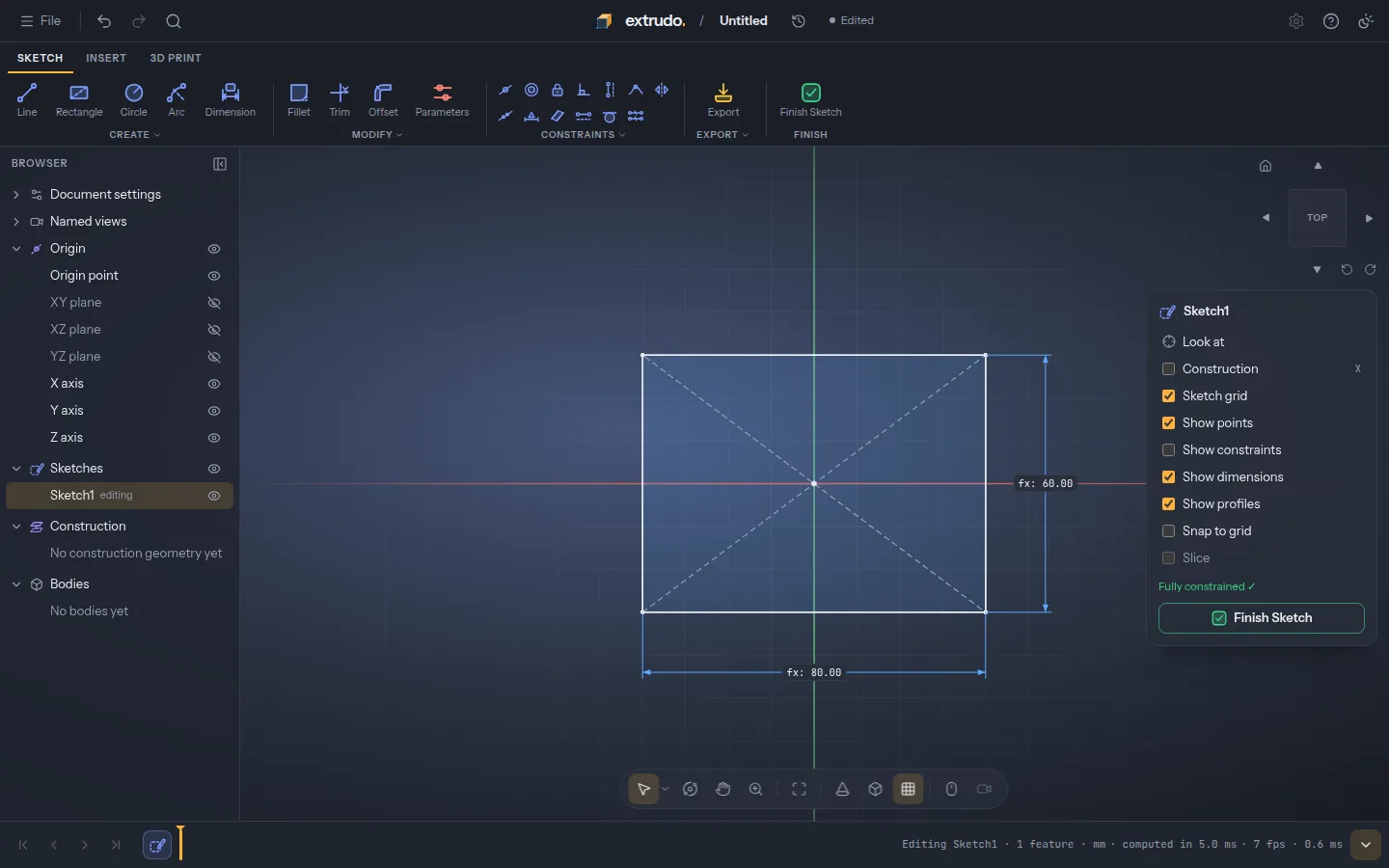

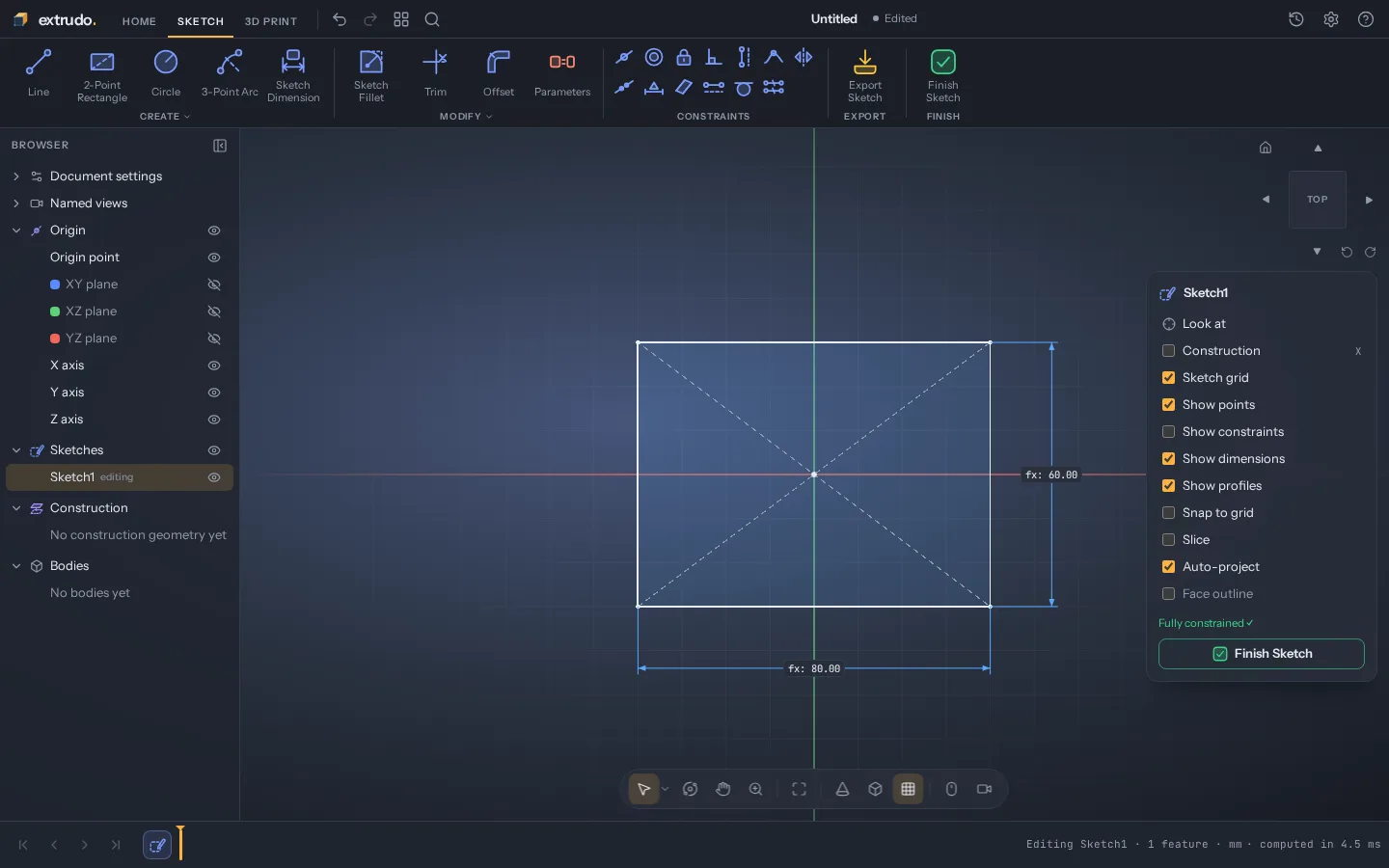

  2. A sketch on the XY plane with a rectangle centred on the origin and its width and depth dimensions.

    Sketch the outline

    Draw a rectangle from its centre and dimension it with two parameters, width and depth, so you can change them later.

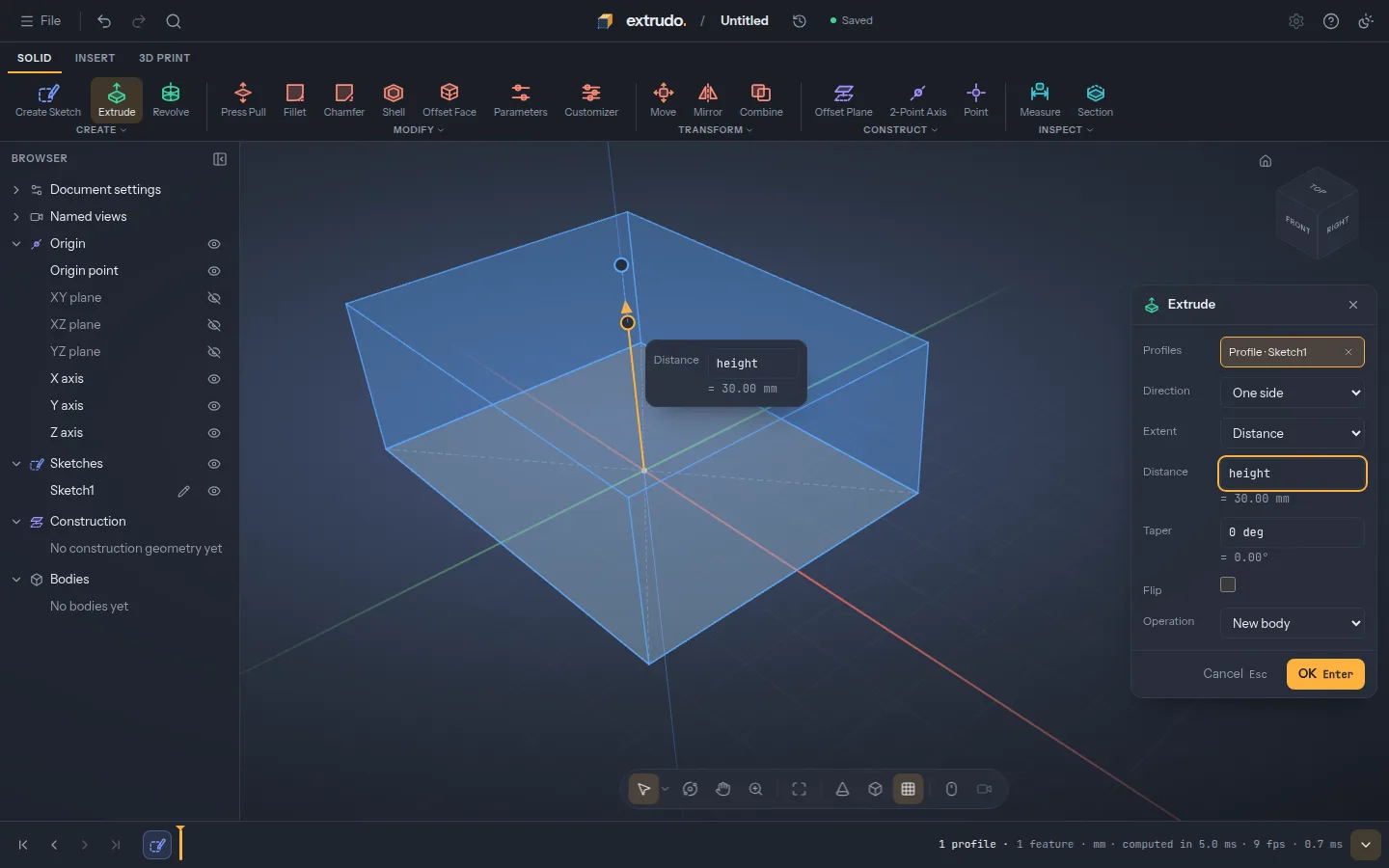

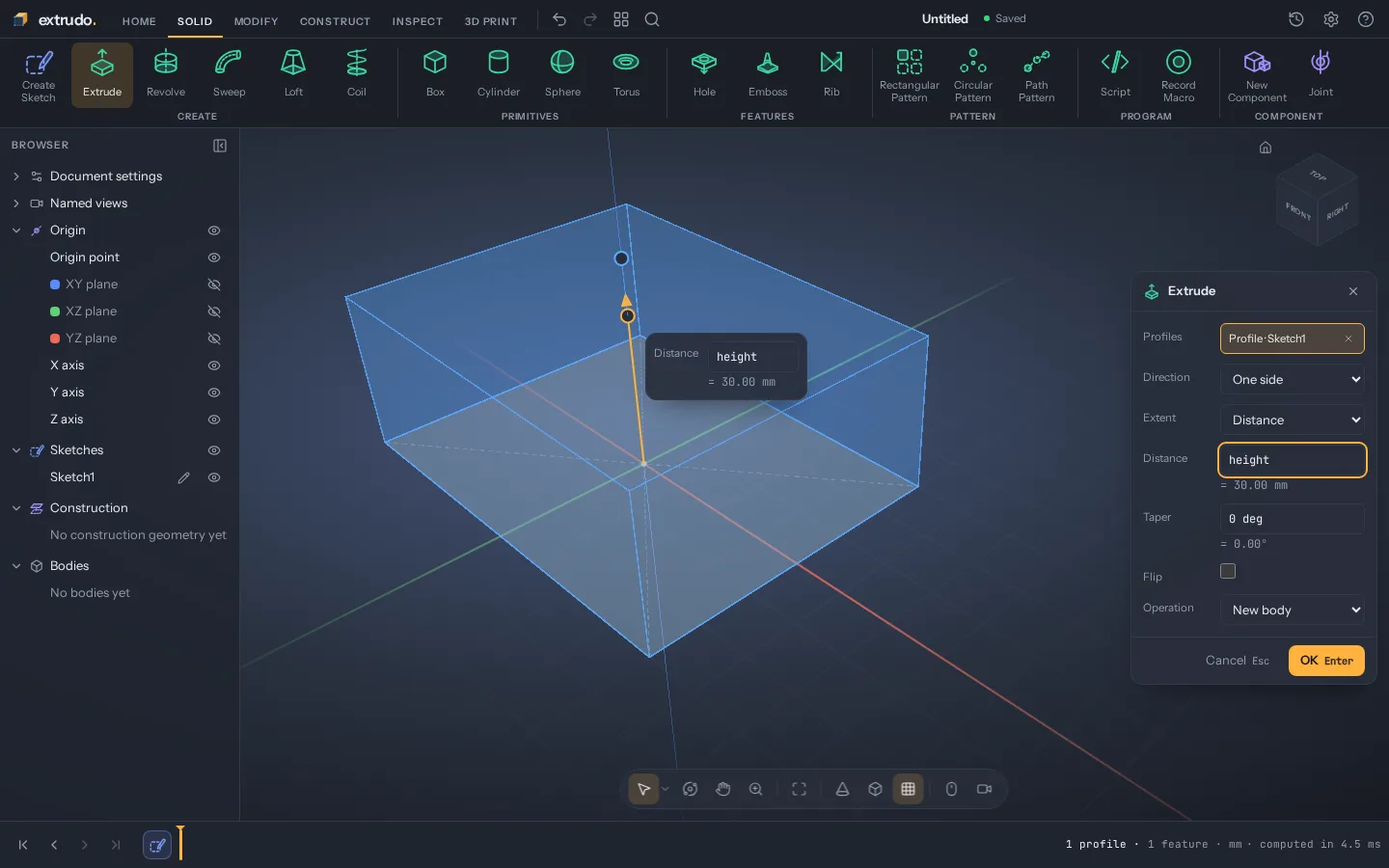

  3. Extrudo's Extrude dialog open beside a preview of the 80 by 60 mm rectangle pulled into a 30 mm block.

    Pull it into a solid

    Extrude the rectangle height up. The preview shows the block before you press OK.

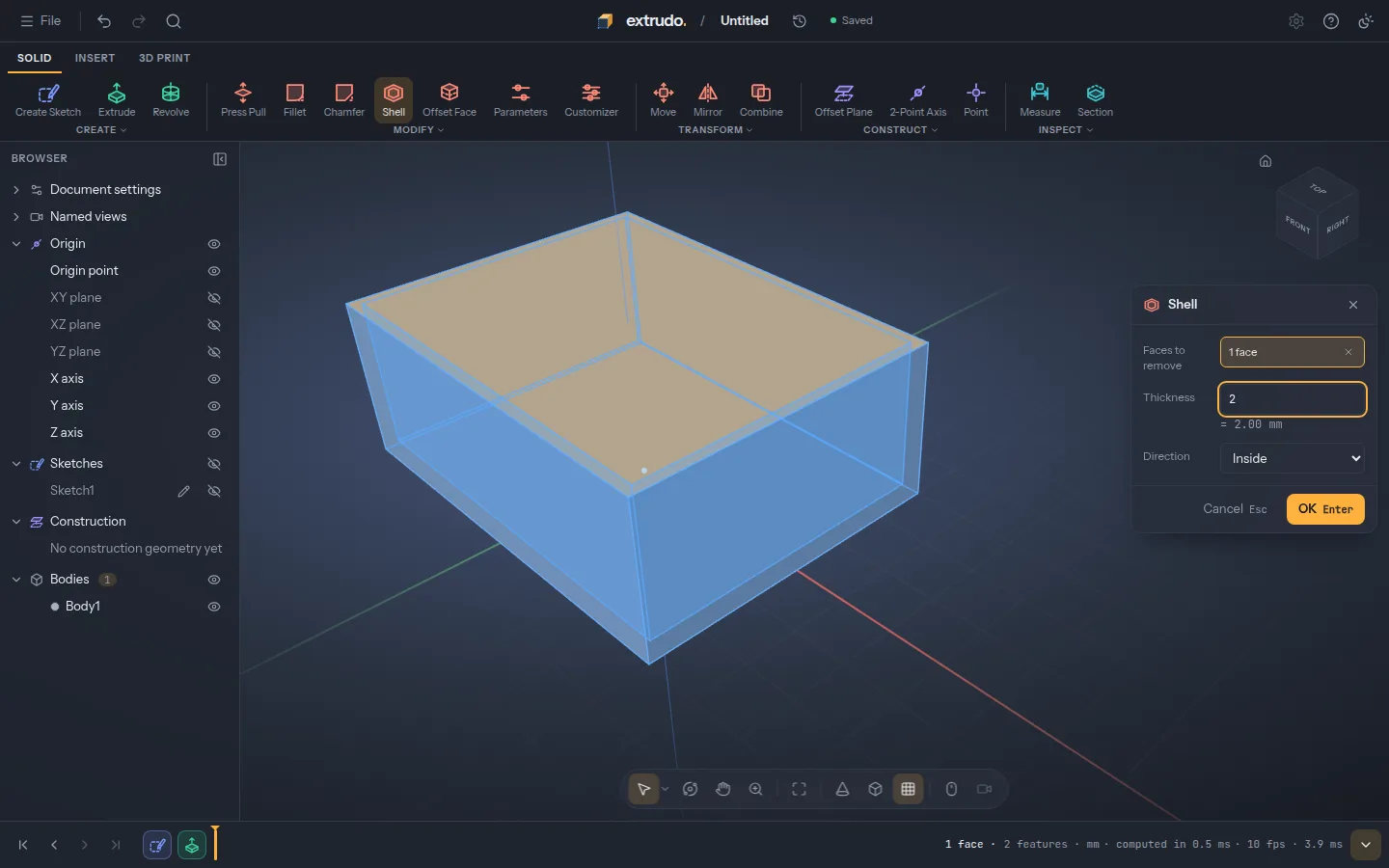

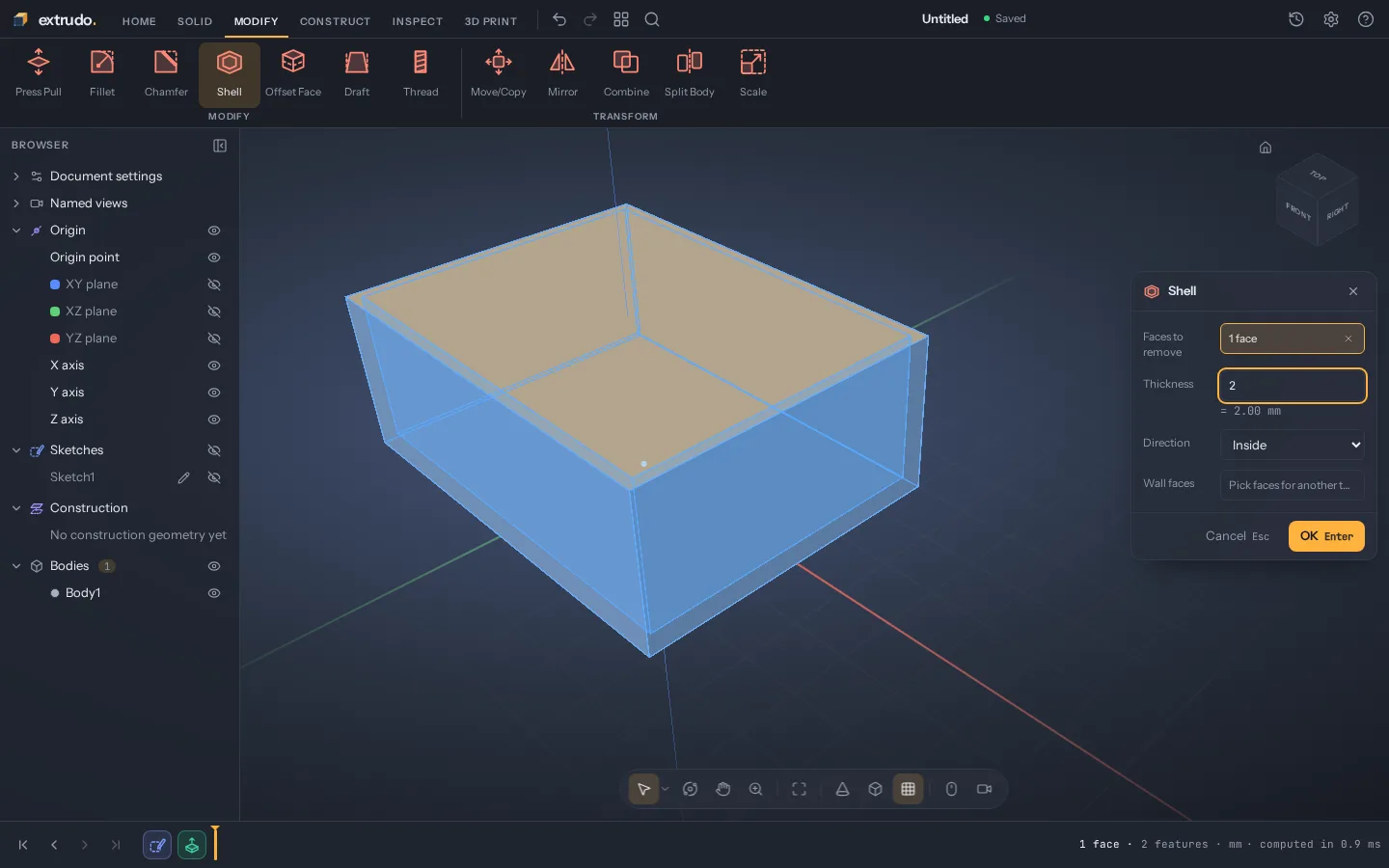

  4. Extrudo's Shell dialog open beside the block, previewing 2 mm walls with the top face removed.

    Hollow it out

    Shell the block with 2 mm walls and the top face removed: that's the tray your board sits in.

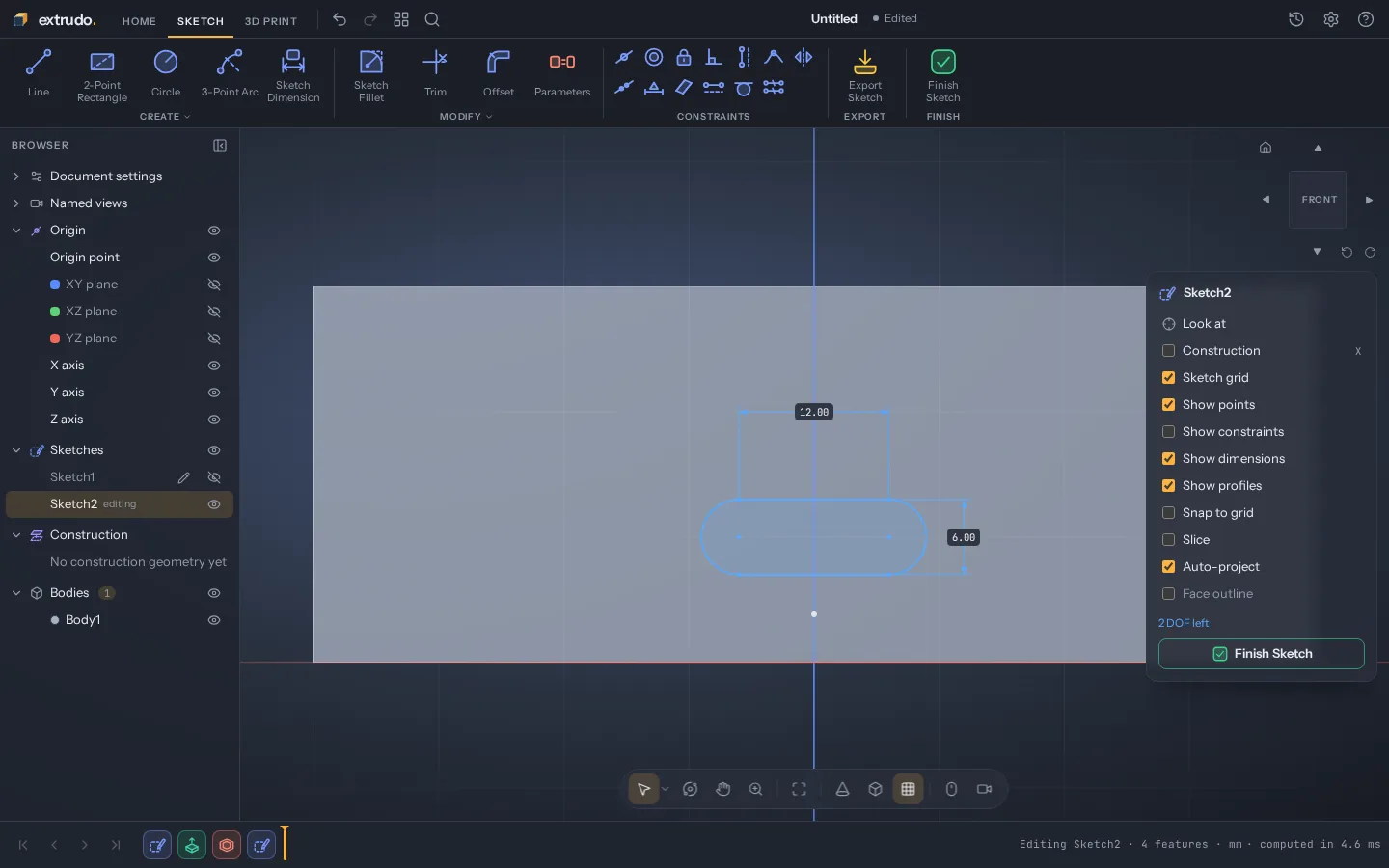

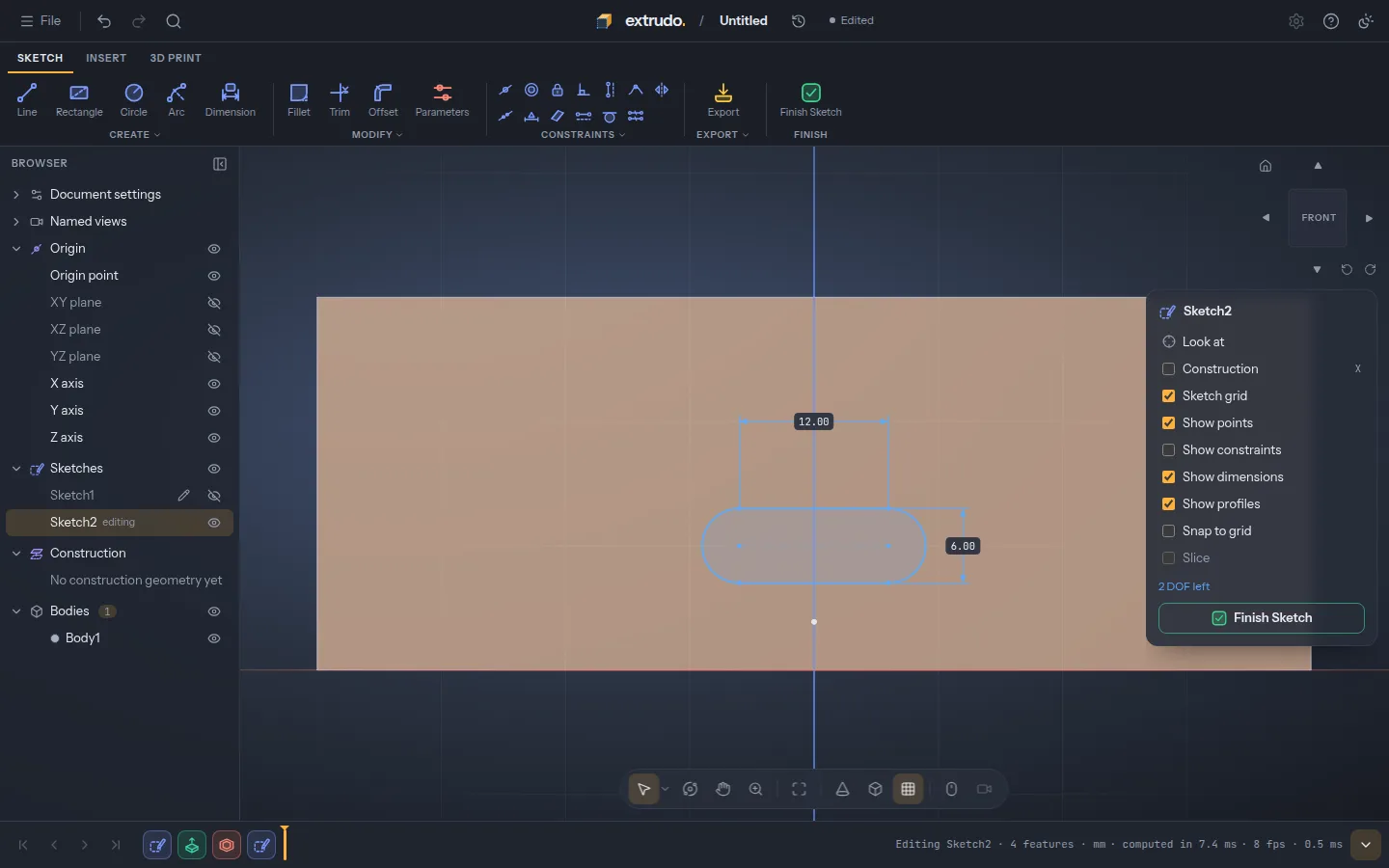

  5. A sketch on the tray's front face with a USB slot and its length and width dimensions.

    Sketch on a wall

    Start a sketch right on the front face and draw a slot where the USB connector goes.

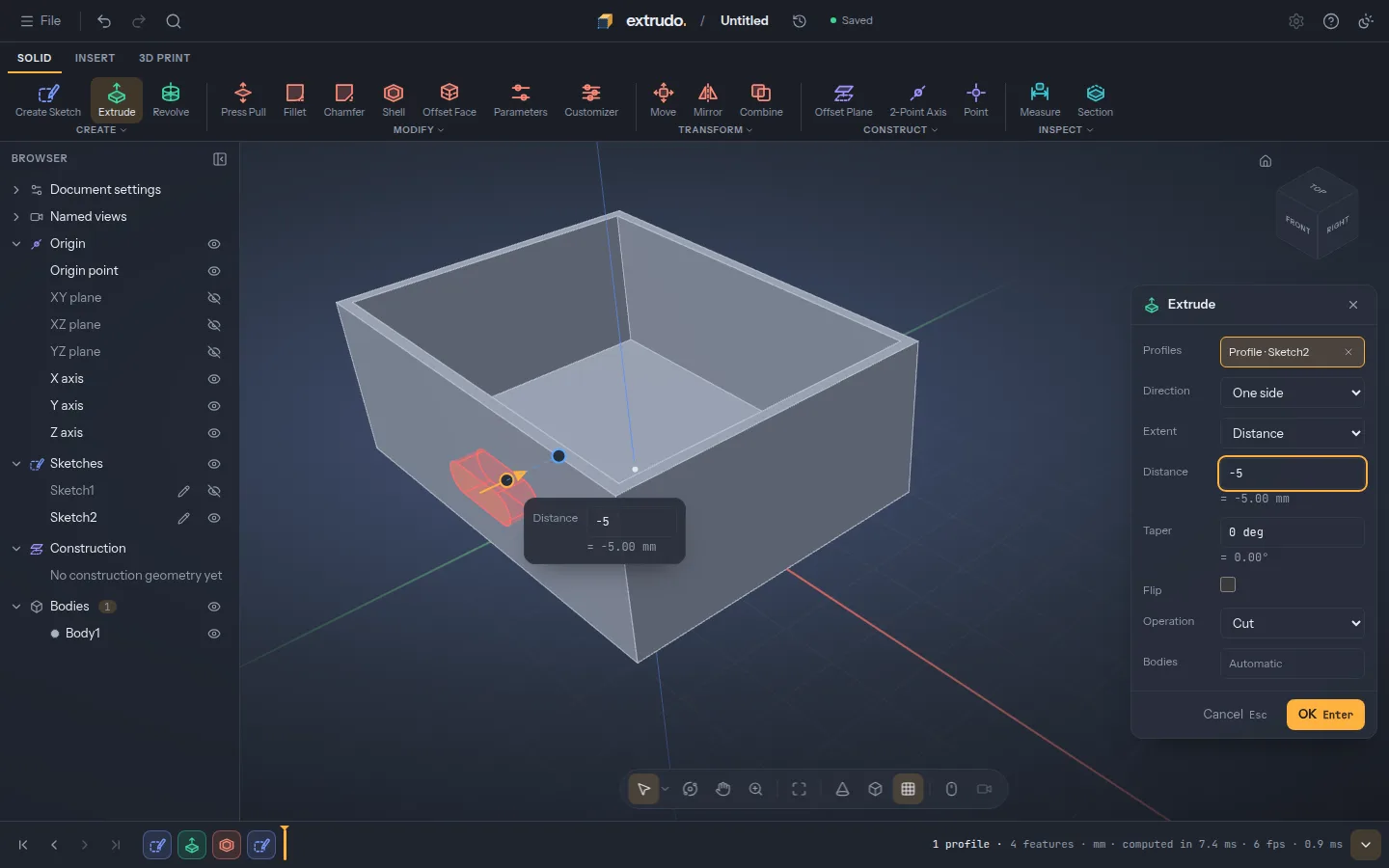

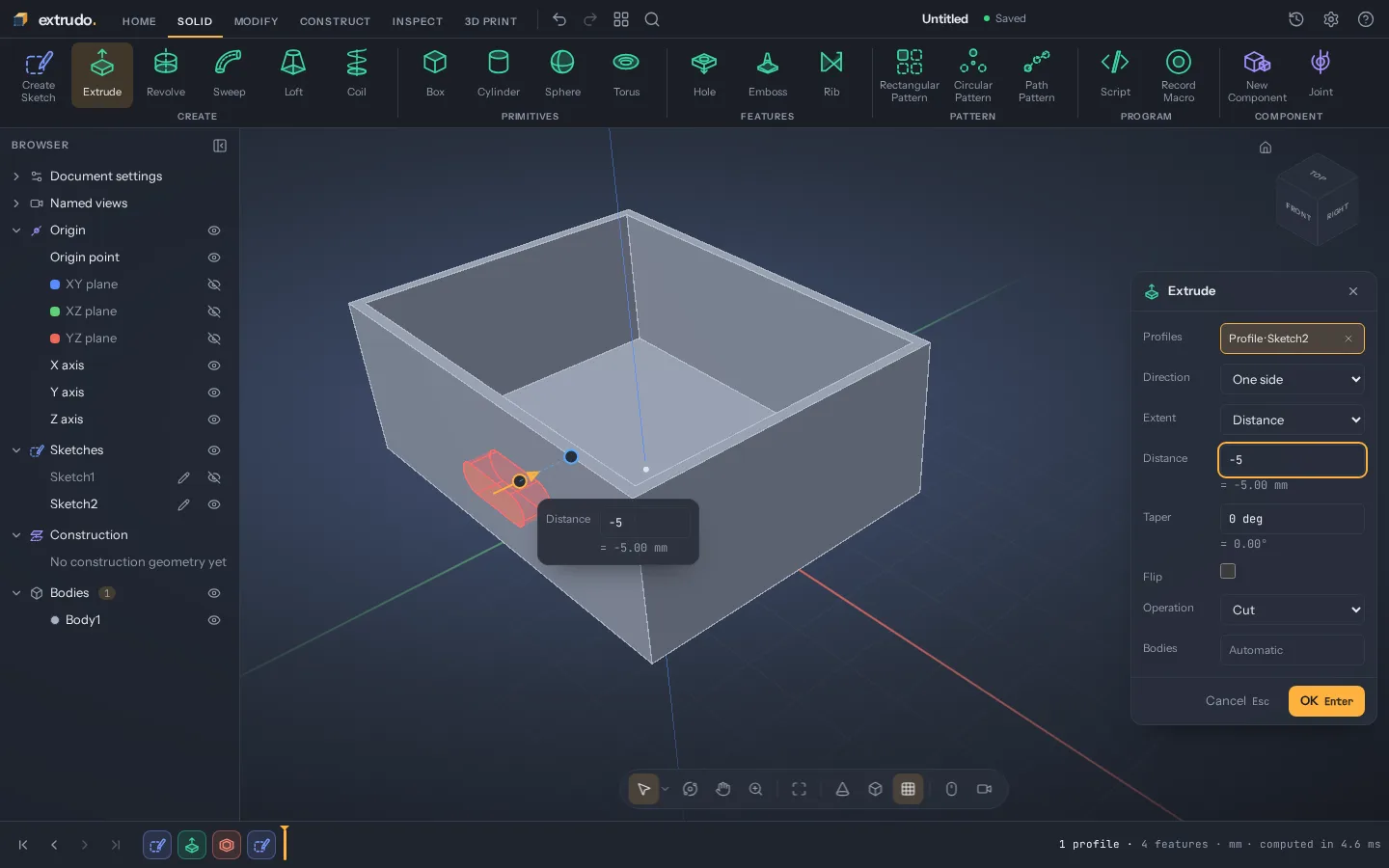

  6. Extrudo's Extrude dialog open beside the tray, previewing the slot cut 5 mm into the front wall.

    Cut the opening

    Extrude the slot into the wall as a cut, just deep enough to go through it.

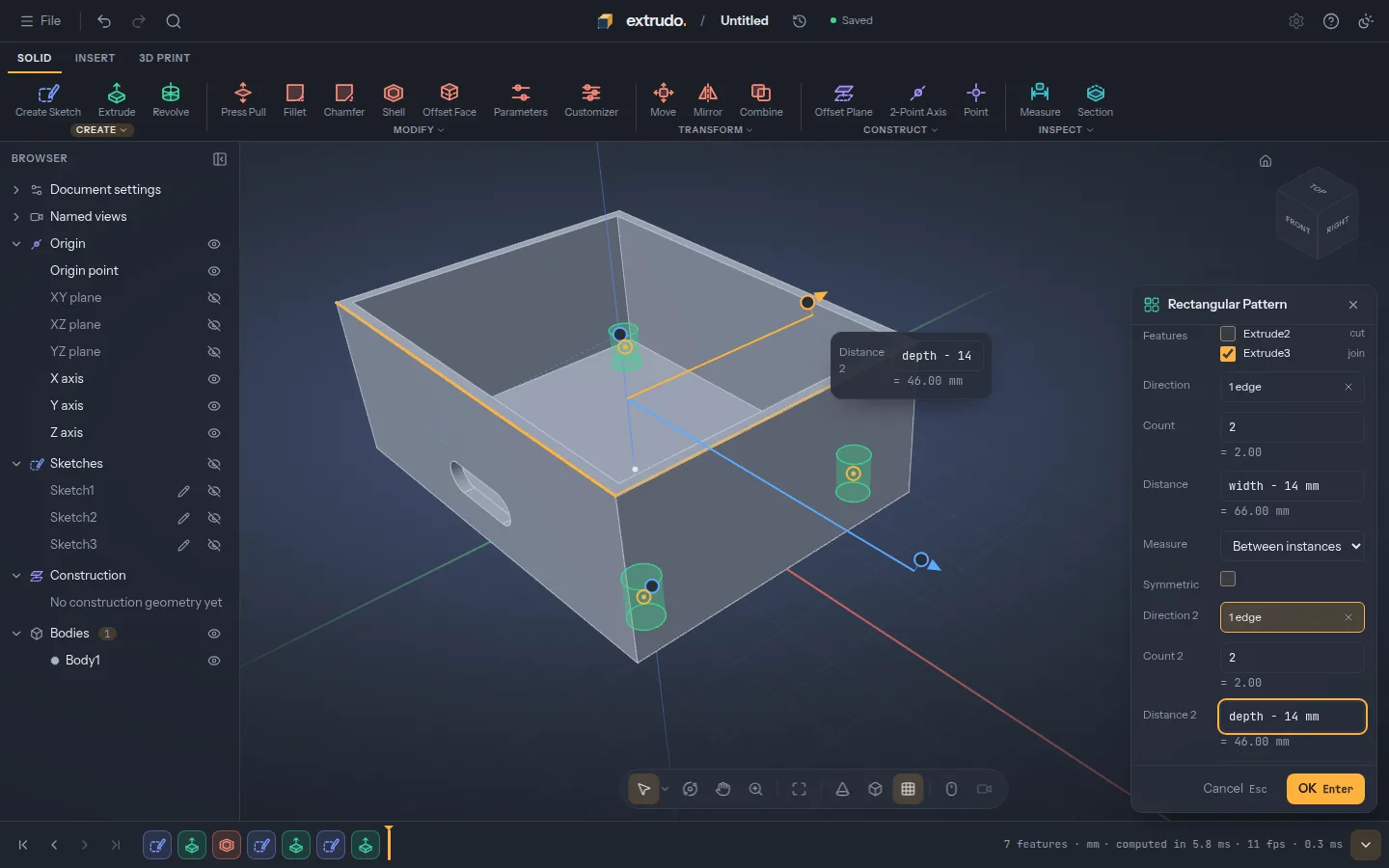

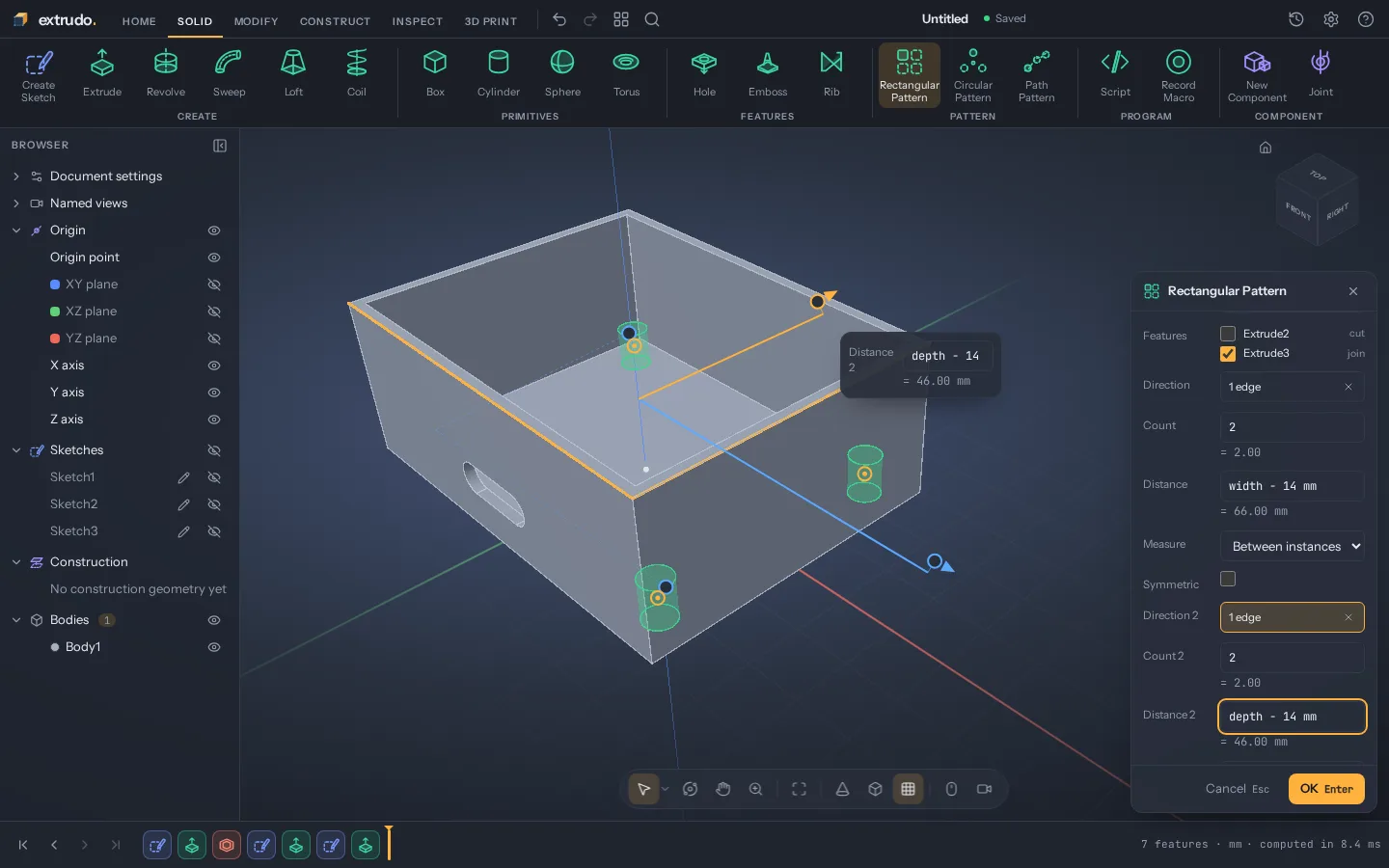

  7. Extrudo's Rectangular Pattern dialog open beside the tray, previewing four screw posts at its corners.

    Add screw posts

    Extrude one post from the floor, then repeat it to the four corners with a pattern spaced from width and depth.

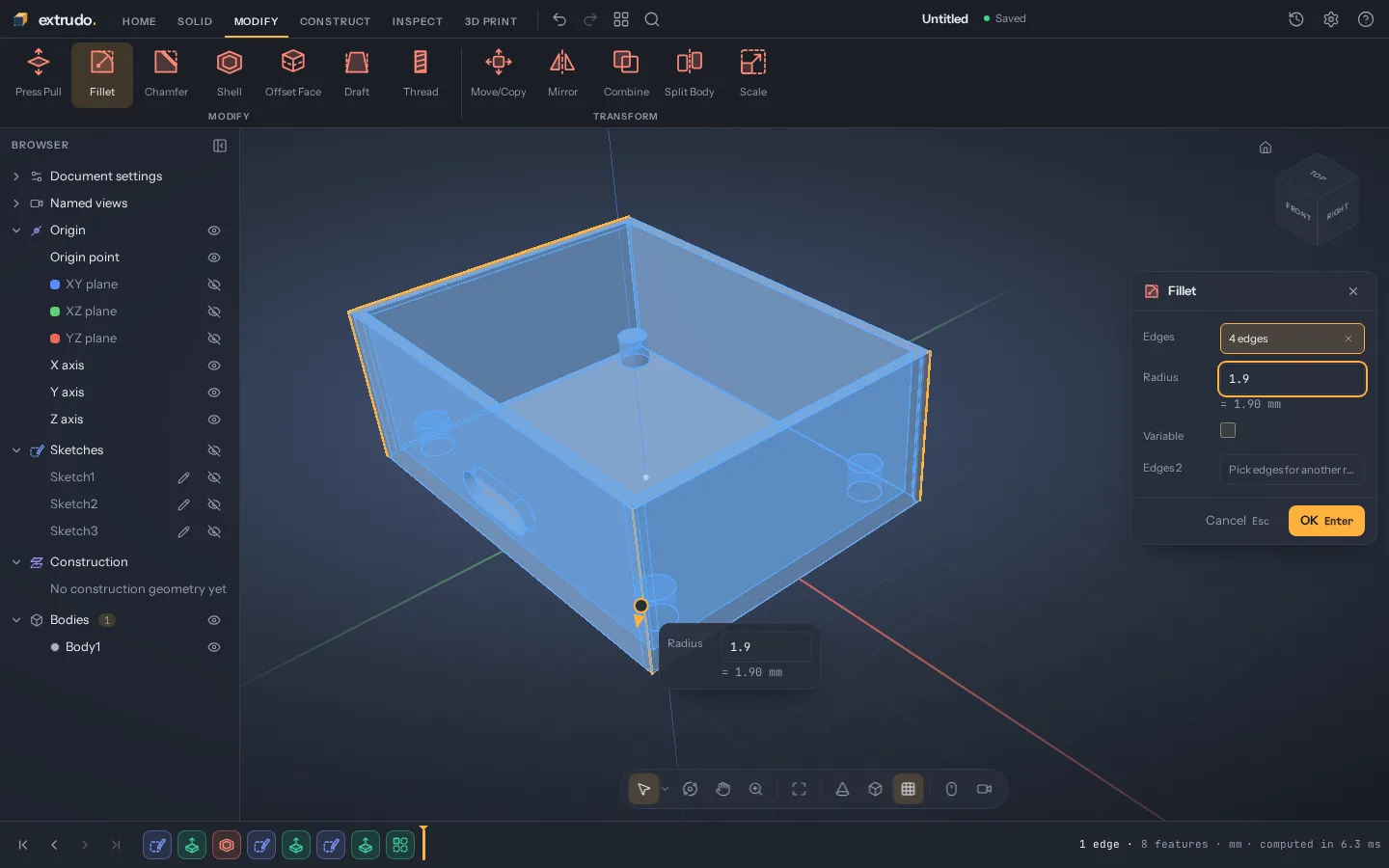

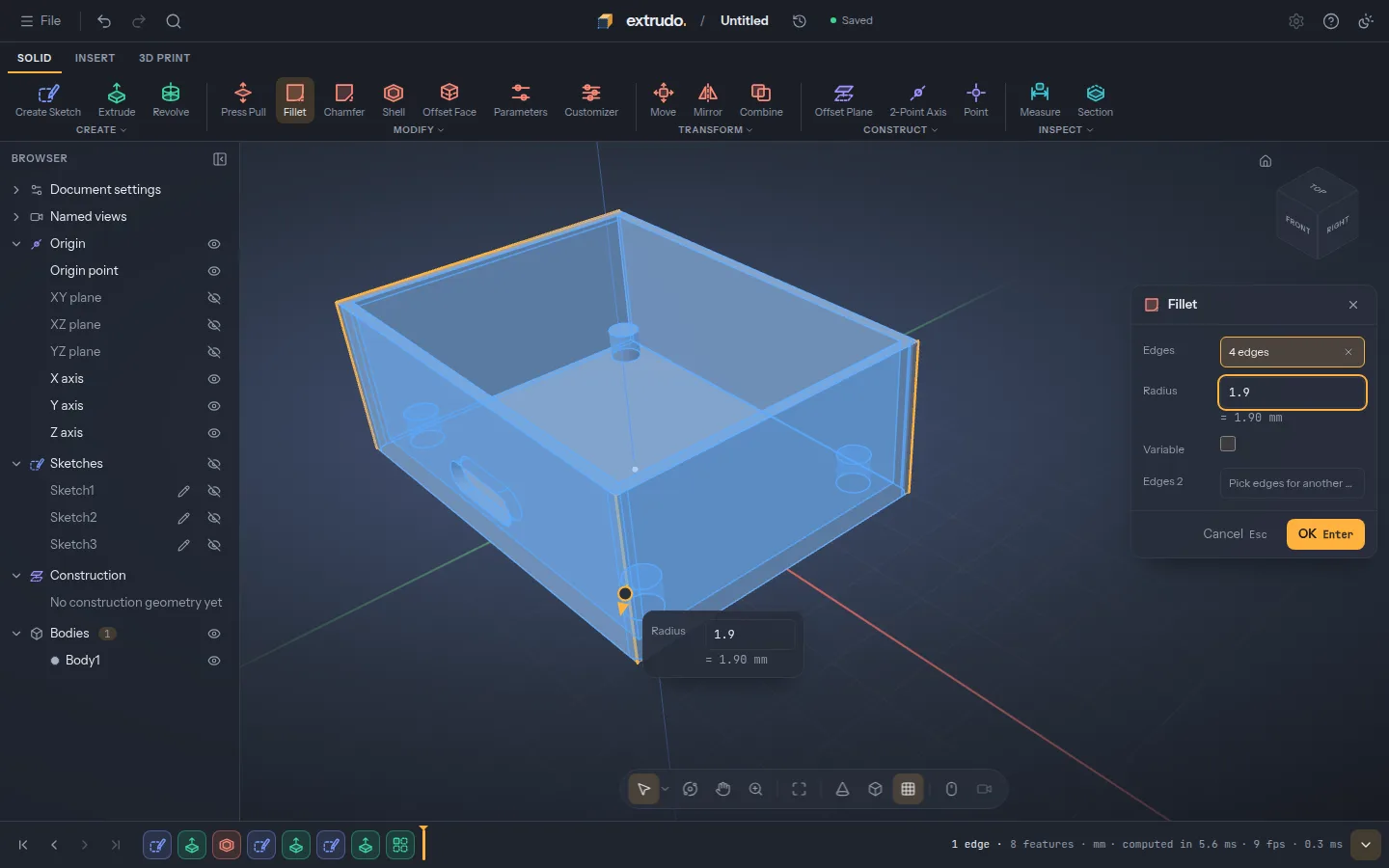

  8. Extrudo's Fillet dialog open beside the tray, previewing the four outer vertical edges rounded.

    Round the corners

    Fillet the four outer edges, so the box is nicer to hold and its corners print cleanly.

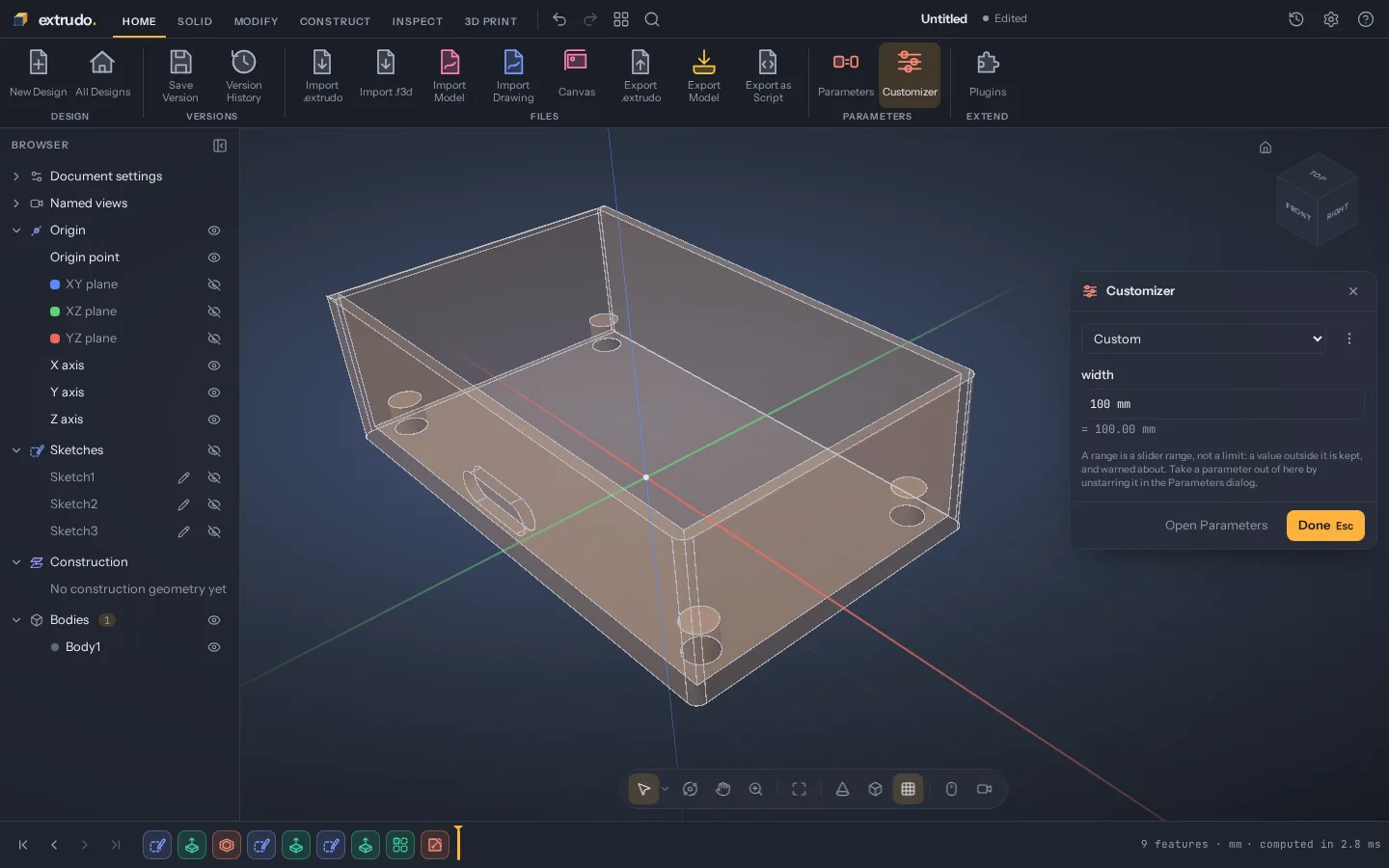

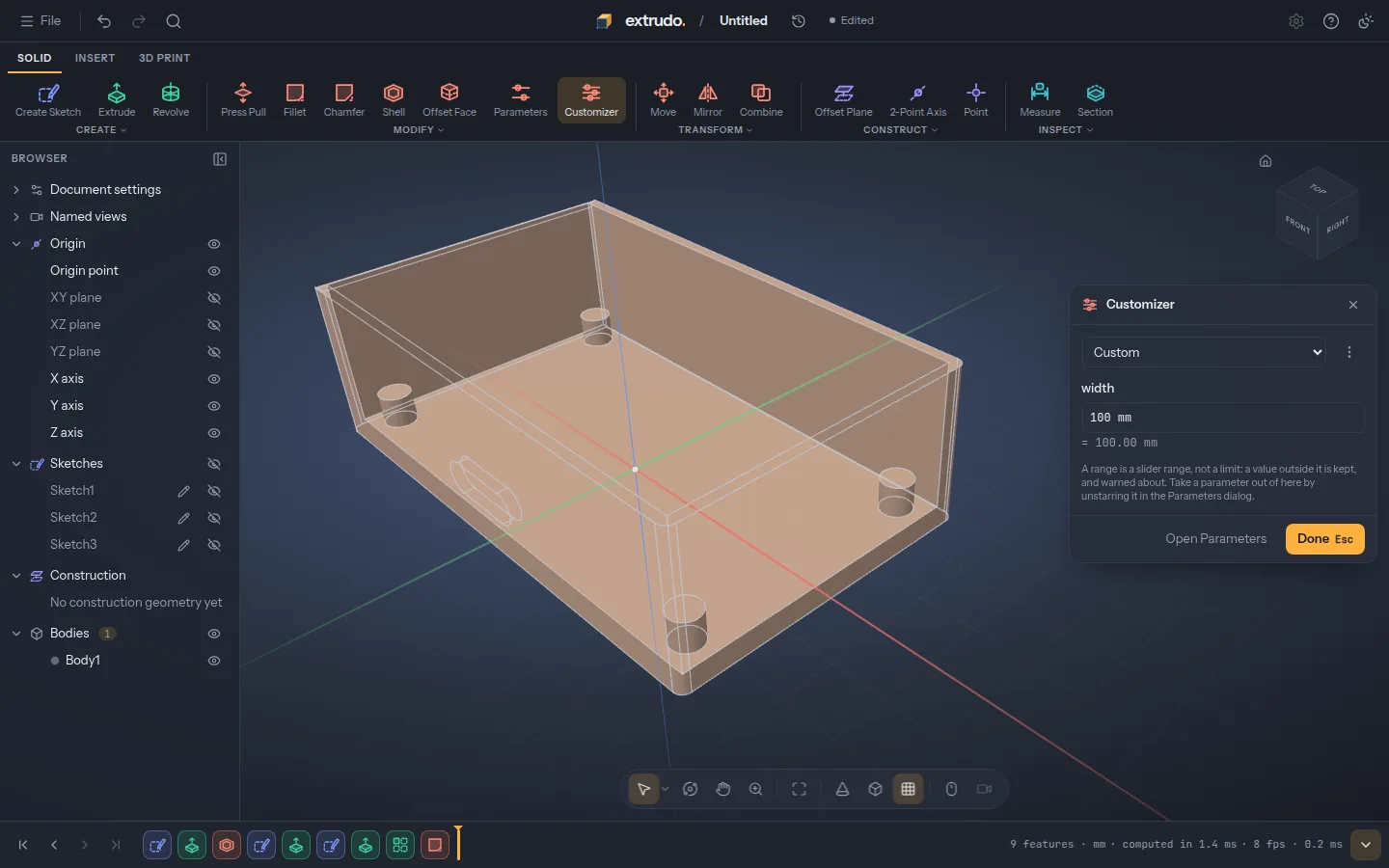

  9. The Customizer panel showing width at 100 mm beside the wider, see-through box with its slot and four posts.

    Change one number

    Set width to 100 mm. The outline, the walls, the slot and the posts all follow: that's what parametric means.

Features

What it does

Constrained sketches, exact solids, parameters everywhere and checks for printing, plus scripts, plugins and the file formats you already use.

See all features

Get started

Start from a template, or take the tour

A five-step tour walks you through your first part: a sketch, a dimension, an extrude and a fillet. Or open one of the templates and change its parameters.

Open Extrudo

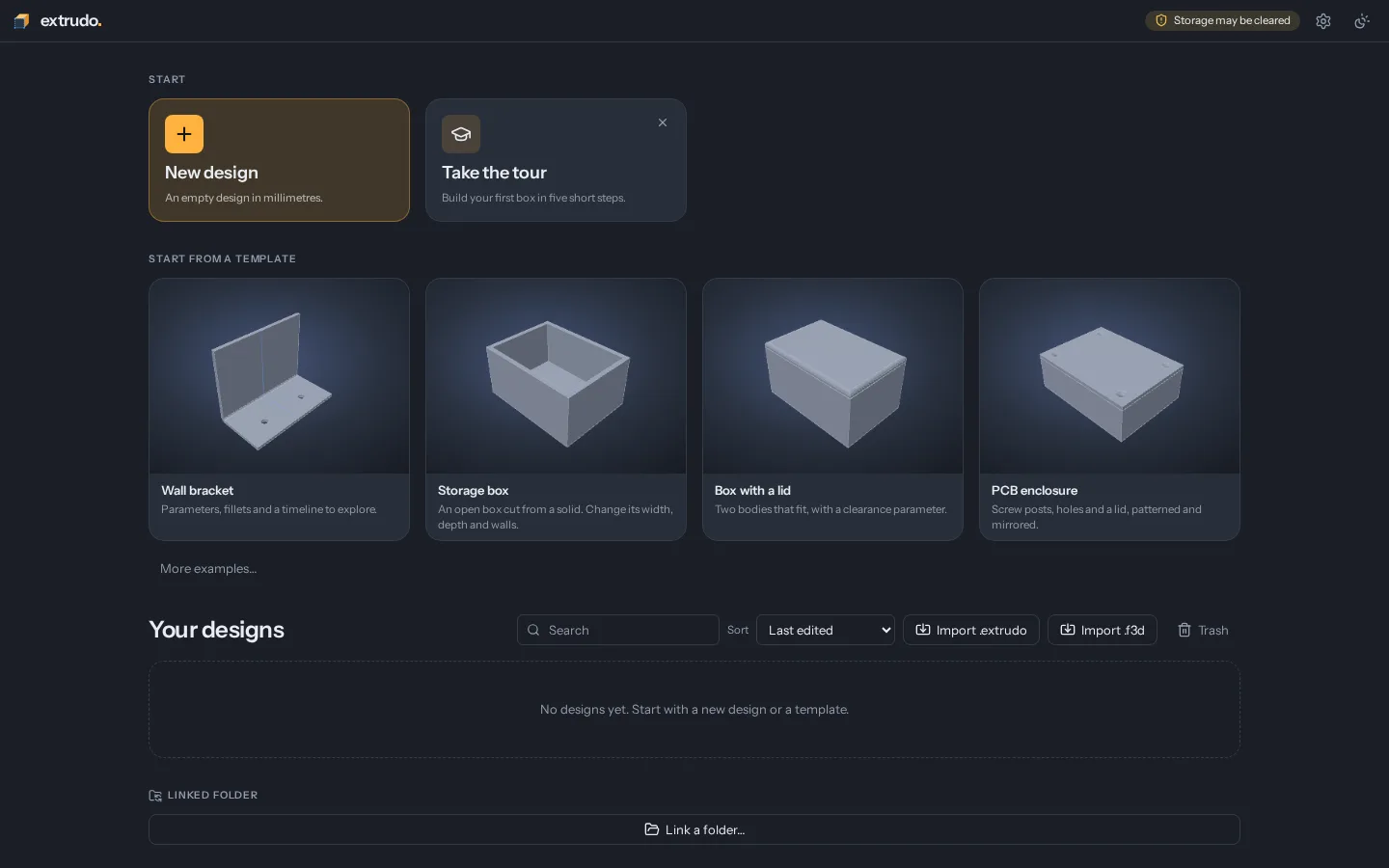

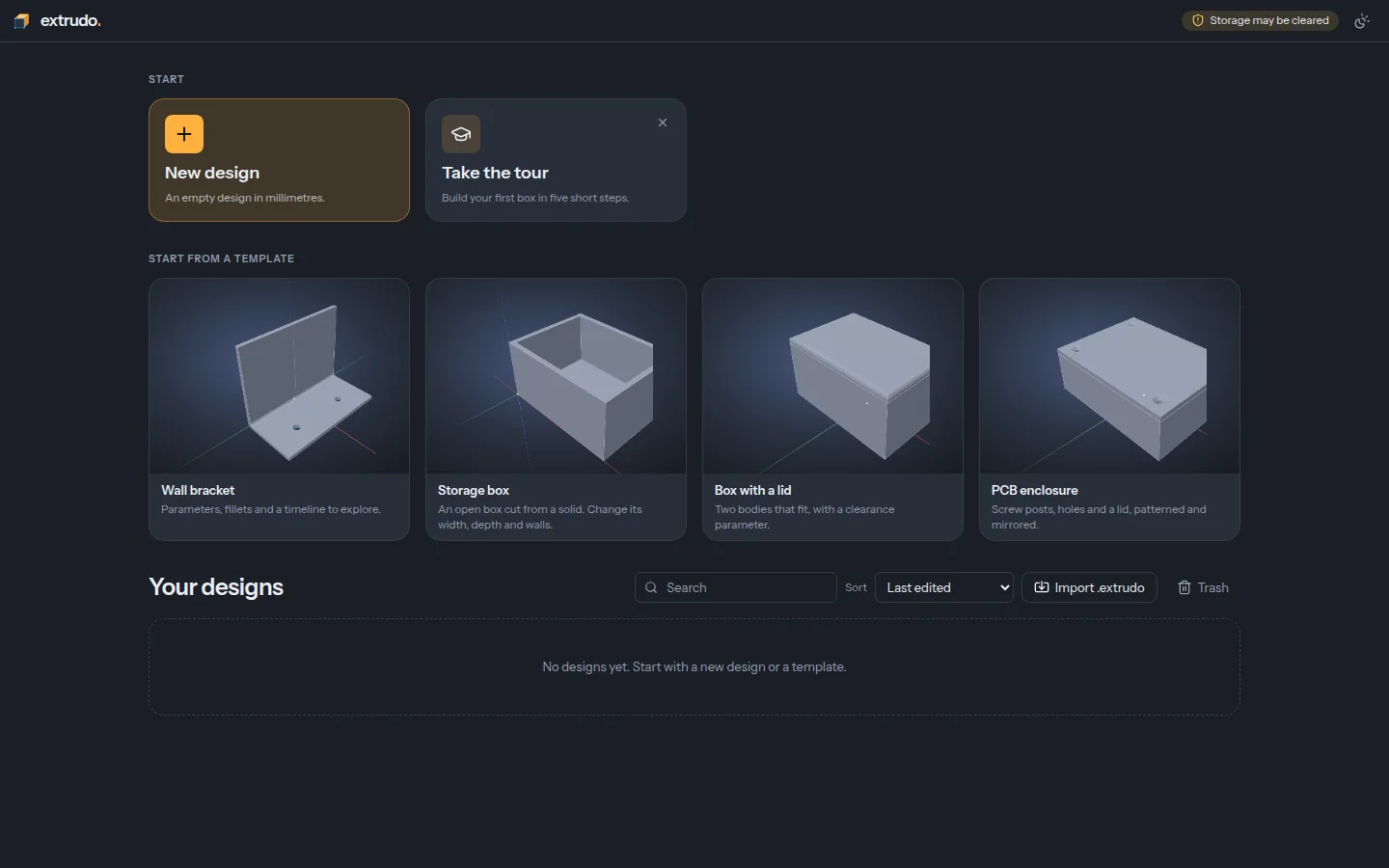

Extrudo's home screen, with a New design card, the tour, four templates and more examples.

FAQ

Questions and answers

Short answers to what people ask first. The guide has the long ones.

Is Extrudo free?

Yes. Extrudo is free and open source under the GPL-3.0. There is no paid version and no account.

Do I need to install anything?

No. Open it in a current Chrome, Edge, Firefox or Safari and start designing. To give it a window of its own, install it from the browser's menu.

Is there a desktop app?

Yes, for Linux, Windows and macOS. It is the same Extrudo in a window of its own: it opens .extrudo files from your file manager and sends models straight to your slicer. Download and install it.

Where are my designs stored?

In your browser's own storage, on your computer. Nothing is uploaded, and the app has no analytics. To keep a copy or move a design to another machine, use Home › Export Design, which writes an .extrudo file. In Chrome and Edge you can also link a folder on your disk, and the desktop app saves to files.

Are my designs shared with others?

No. Extrudo has no server that keeps designs, so nothing you make is uploaded or seen by anyone else. A design only leaves your computer when you send it yourself: export it with Home › Export Design and share the .extrudo file, or export a 3MF, STL or STEP file of the model.

Does it work offline?

Yes. After the first visit the app is kept in your browser and opens without a connection. The one exception is the OpenSCAD compiler, which is downloaded the first time you import a .scad file.

Can I open files from other CAD programs?

STEP files come in as exact solid bodies, STL, 3MF and OBJ files as mesh bodies, and OpenSCAD files are compiled in your browser. The latest build also reads .f3d files. The features page has the full table of formats.

Which slicers does it work with?

Any slicer that opens 3MF or STL. A 3MF file keeps your bodies' names, colours and units. The desktop app can also open the model straight in PrusaSlicer, OrcaSlicer, Bambu Studio or Cura.

Can I automate a design?

Yes. A Script feature runs TypeScript inside the design, a recorded macro gives you the code for what you just did, and plugins add features of their own. The API docs cover all three.

Is it ready for real work?

It is young and changes quickly. Designs saved by an older version keep opening in newer ones, and the file format is documented. Still, export a copy of the designs that matter to you.

How do I report a problem or ask for a feature?

Open an issue on GitHub, or write to [email protected]. To help with the code, start with CONTRIBUTING.md.
